Base Jack
Treatment: Black, Electro, Hot-Dip-Galvanized
Material: Carbon Steel Q235
Standrad: BS Standard

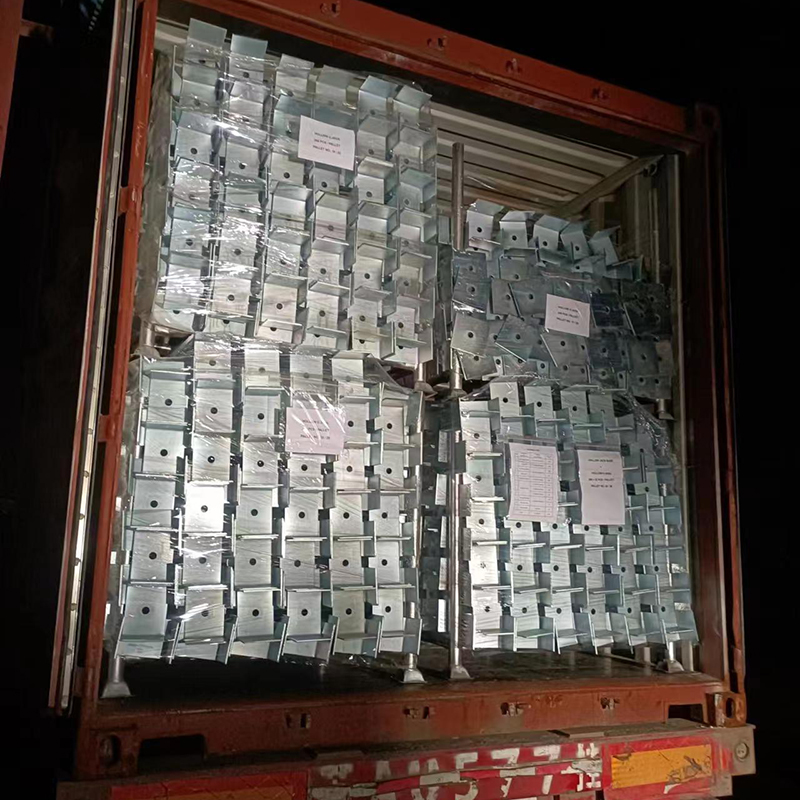

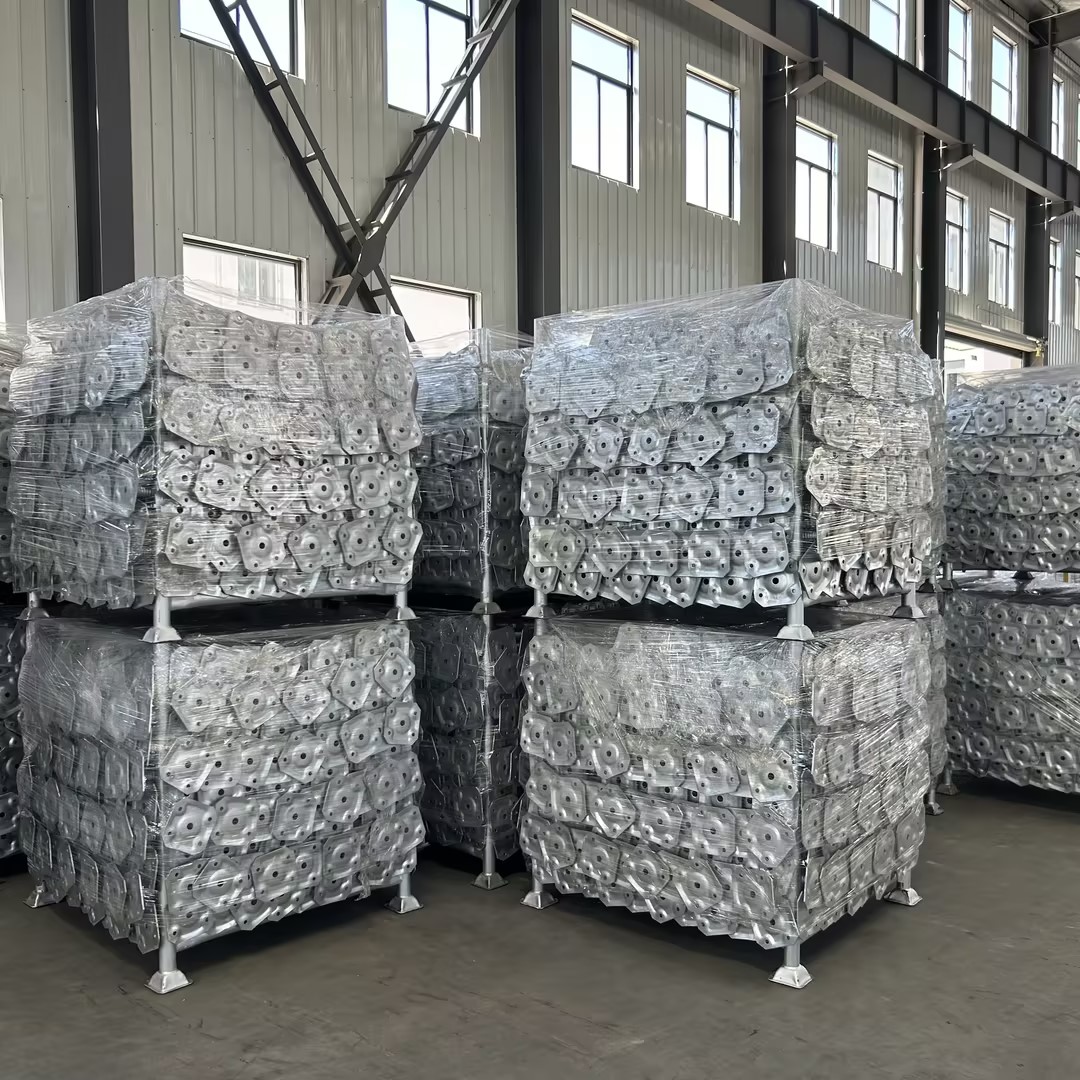

Packaging: Tito, stretch film, straps
Transportation: by sea, by land, by air
Specifications: 40*5*600/150*150*5
Weight: 4.24kg
price: $6.3
Base Jack Advantage
Factory direct sale
Experience: 12 years
Material: stable material supplier
Process: welder + welding robot
Location: port, airport
Customized as required
Base jack Process

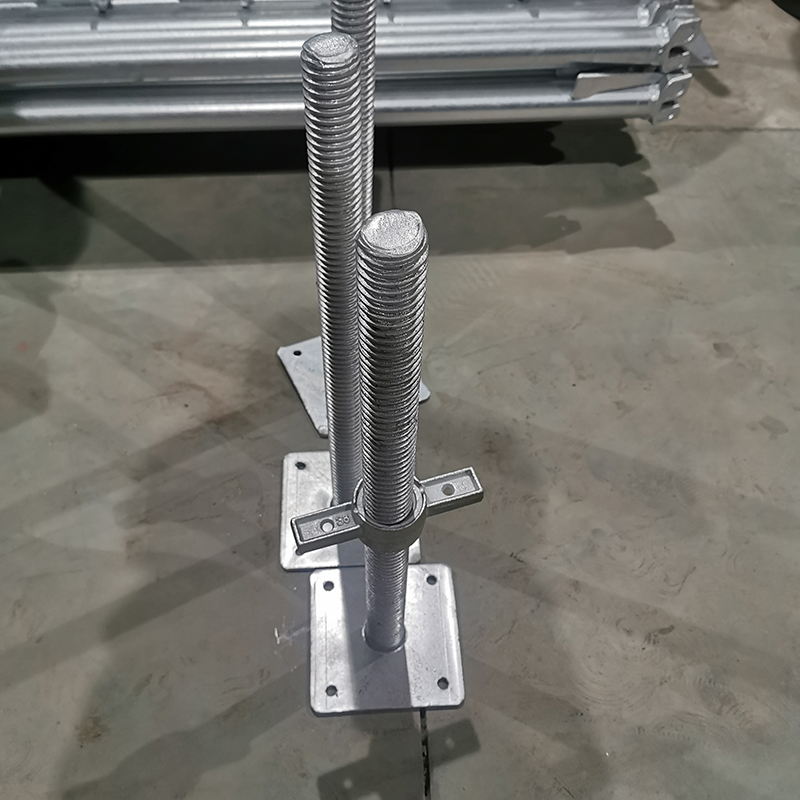

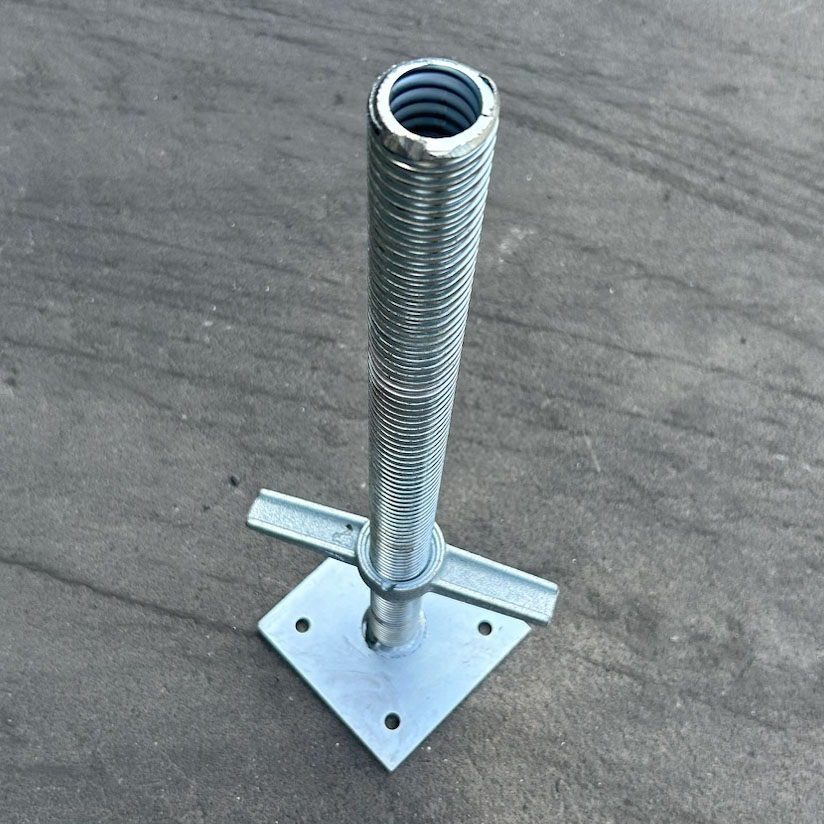

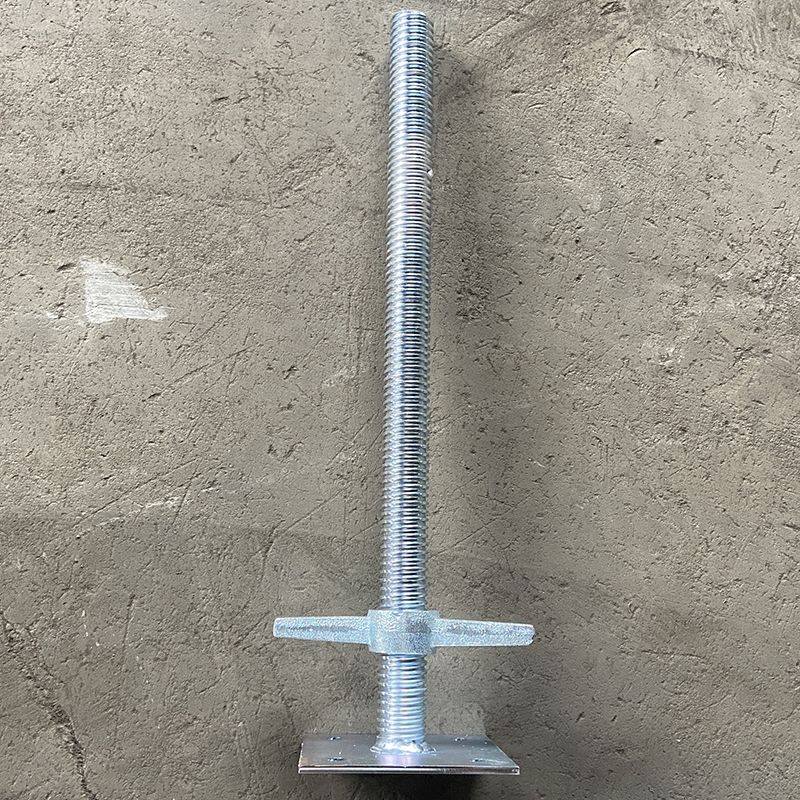

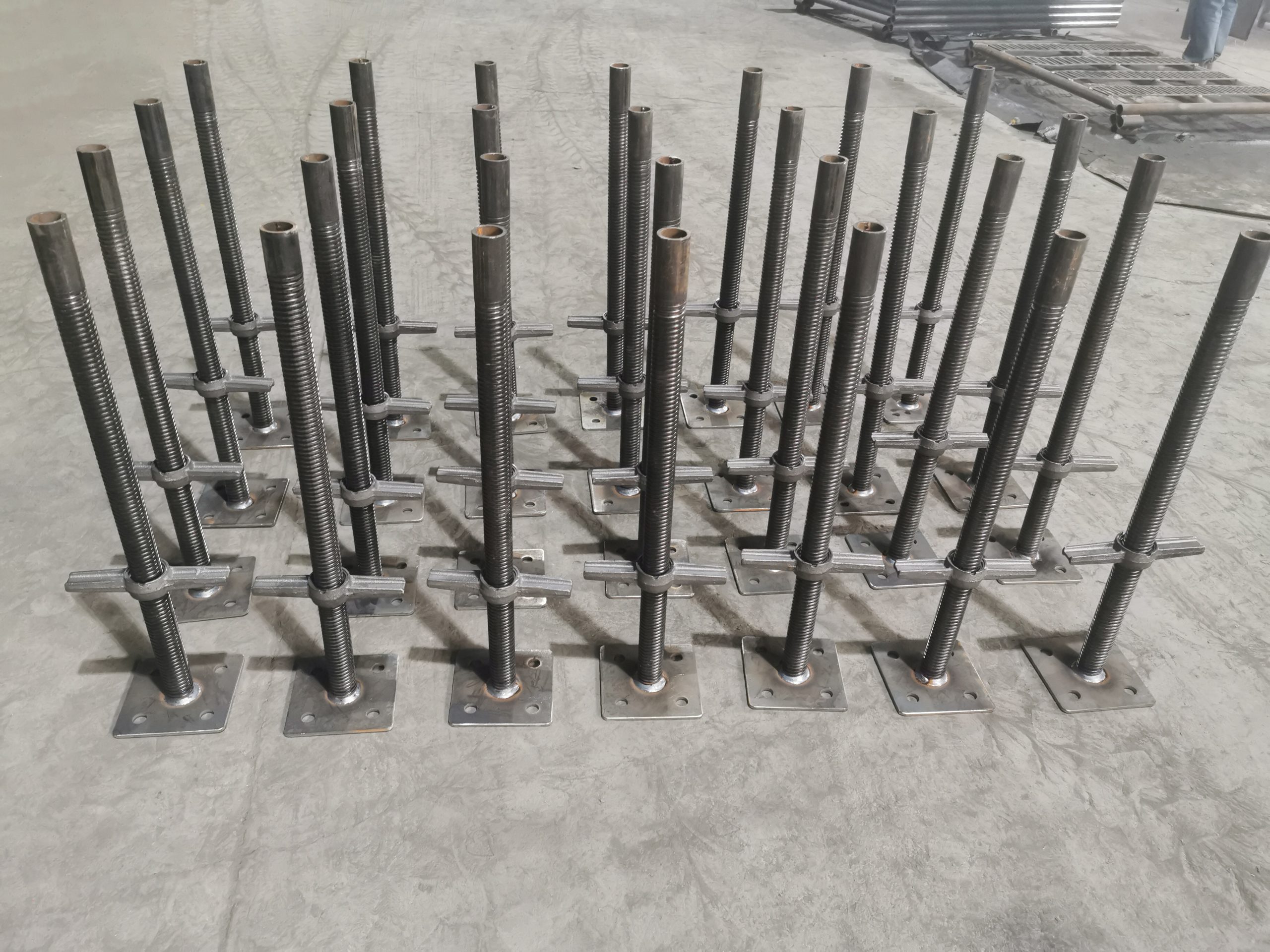

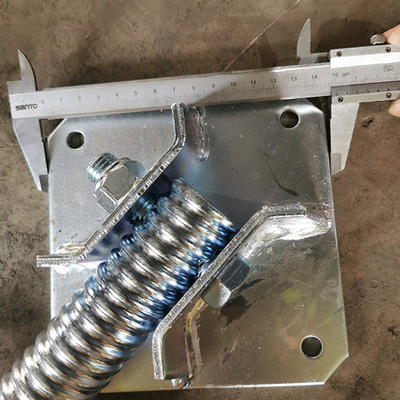

Base jack Details

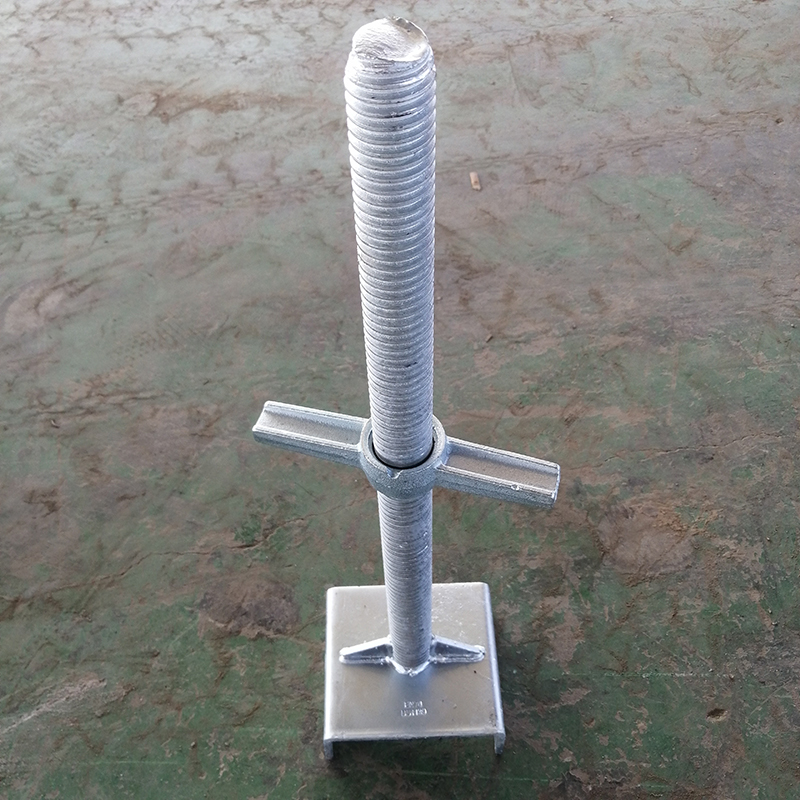

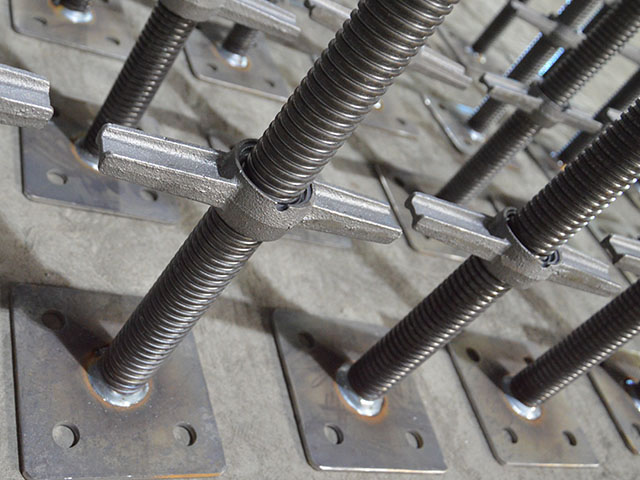

The Base Jack is a heavy-duty adjustable base jack that is manufactured from high tensile steel and fitted with a “Double Podger” collar. It is used as a levelling solution for all types of scaffolding system such as Ringlock Scaffolding,Cuplock Scaffolding and Kwikstage Scaffolding.
Submit to get quote!

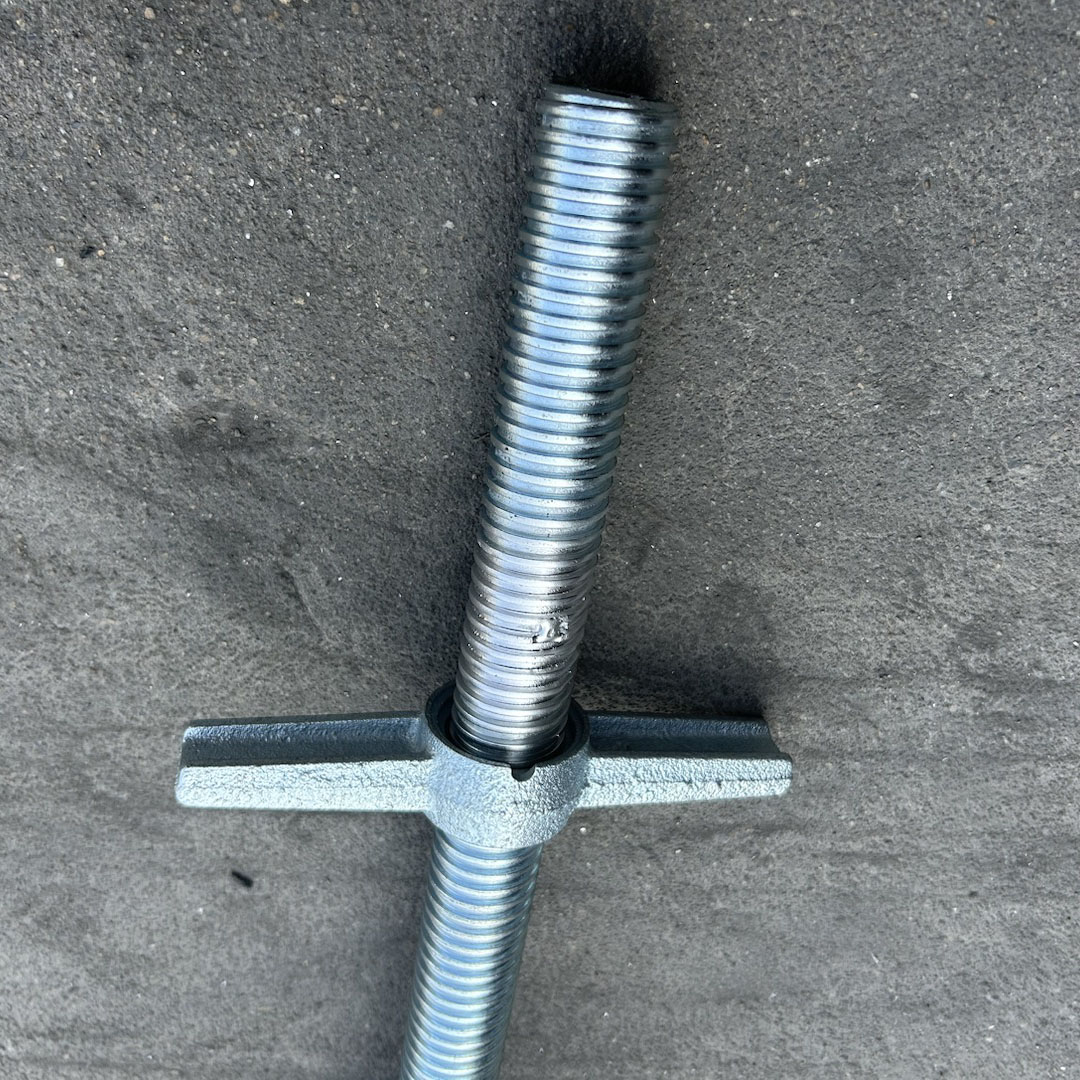

A complete set of base Jack consists of three parts: screw rod, base plate and screw nut.

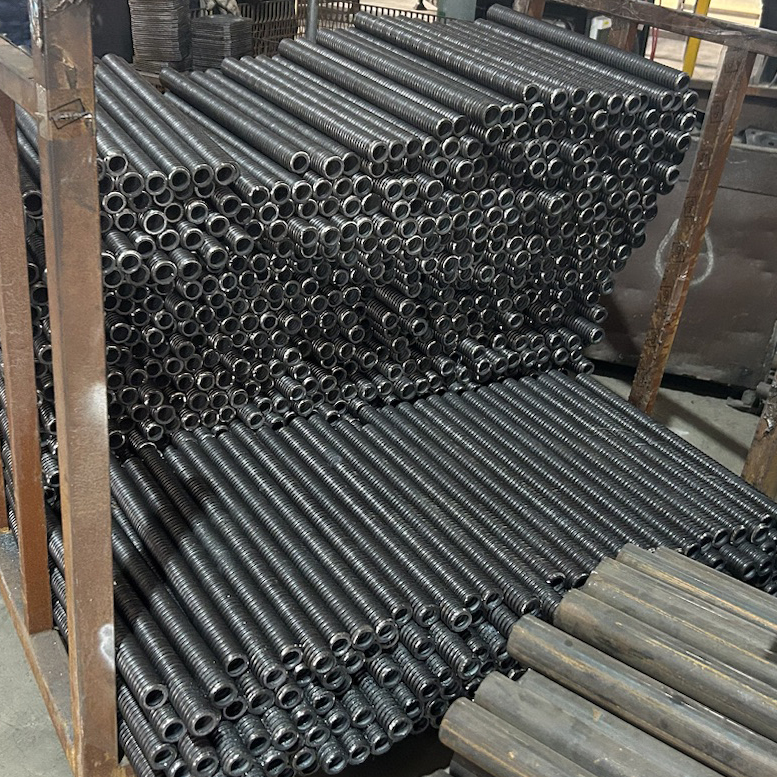

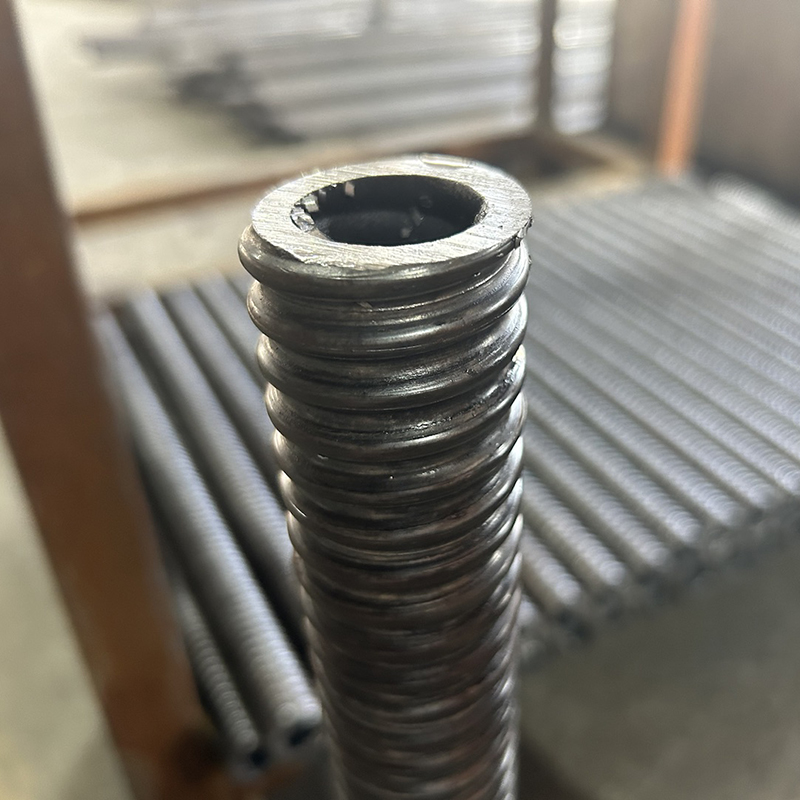

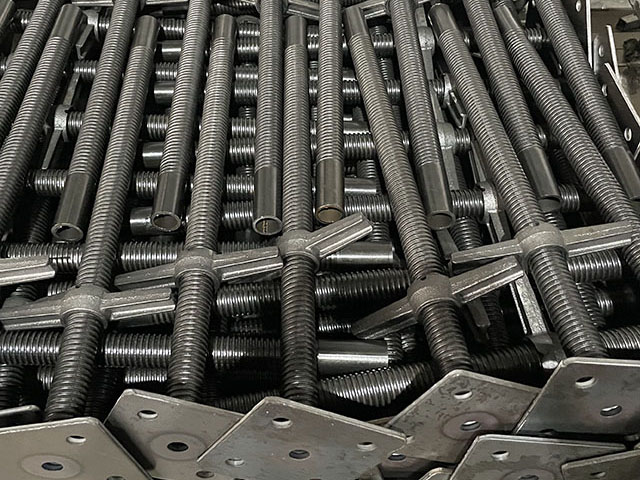

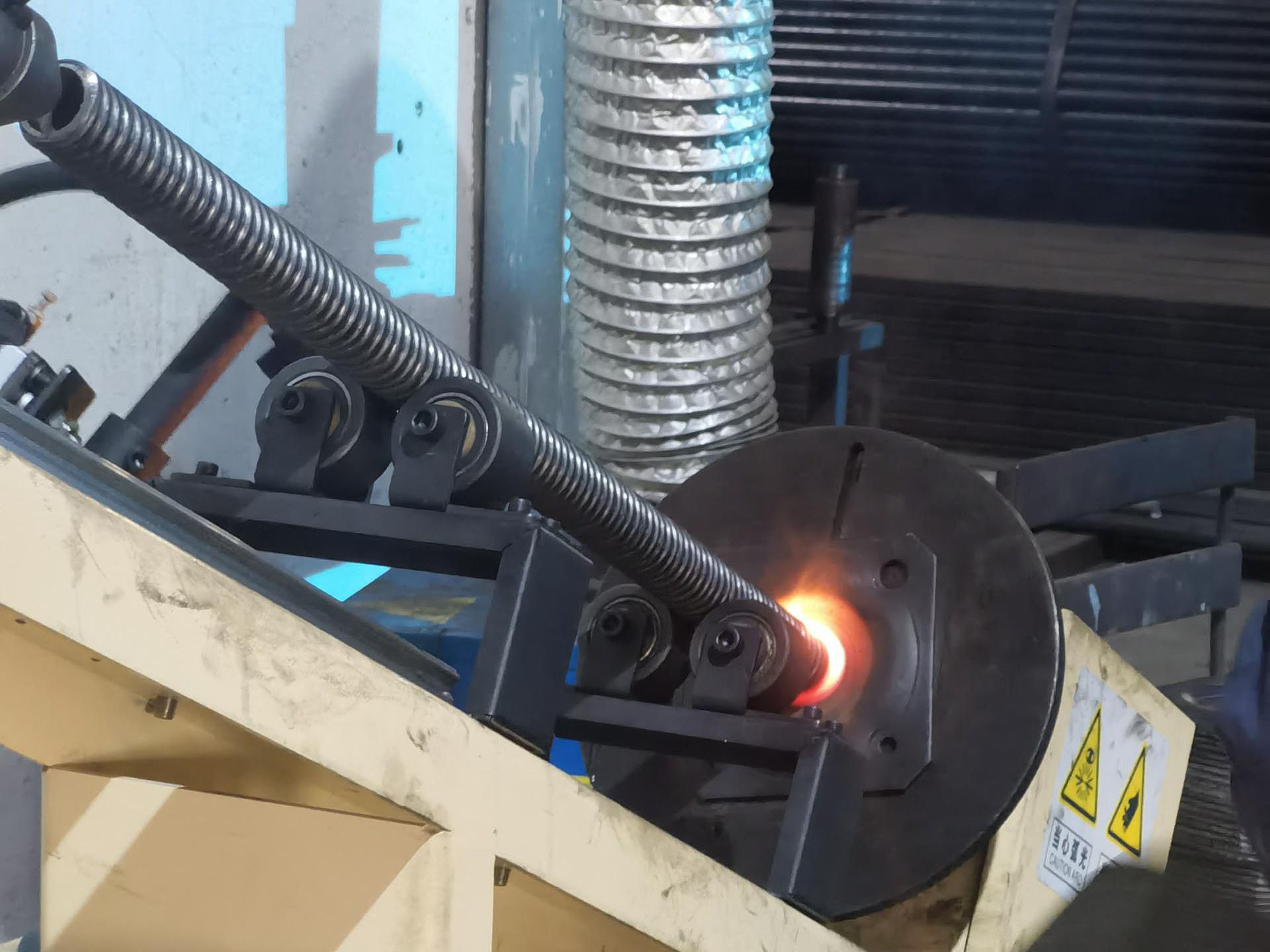

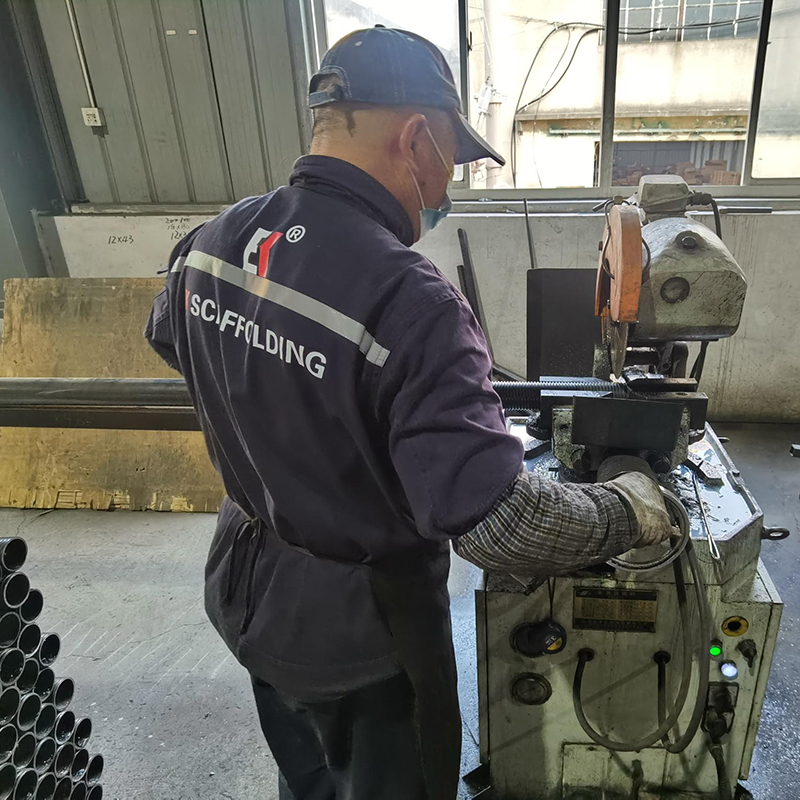

Screw Rod process: raw materials → blanking → pipe cutting/sawing → thread rolling.

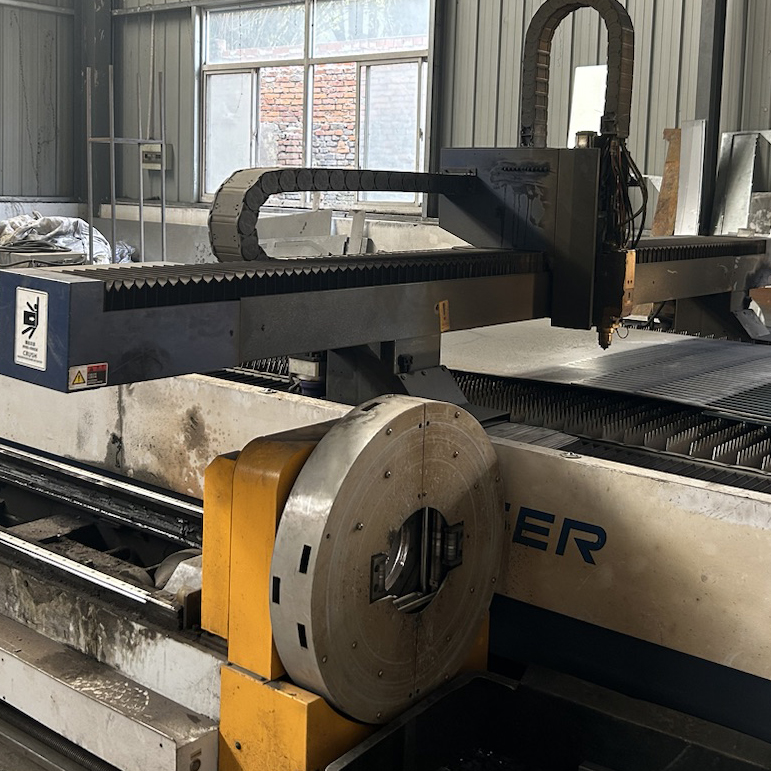

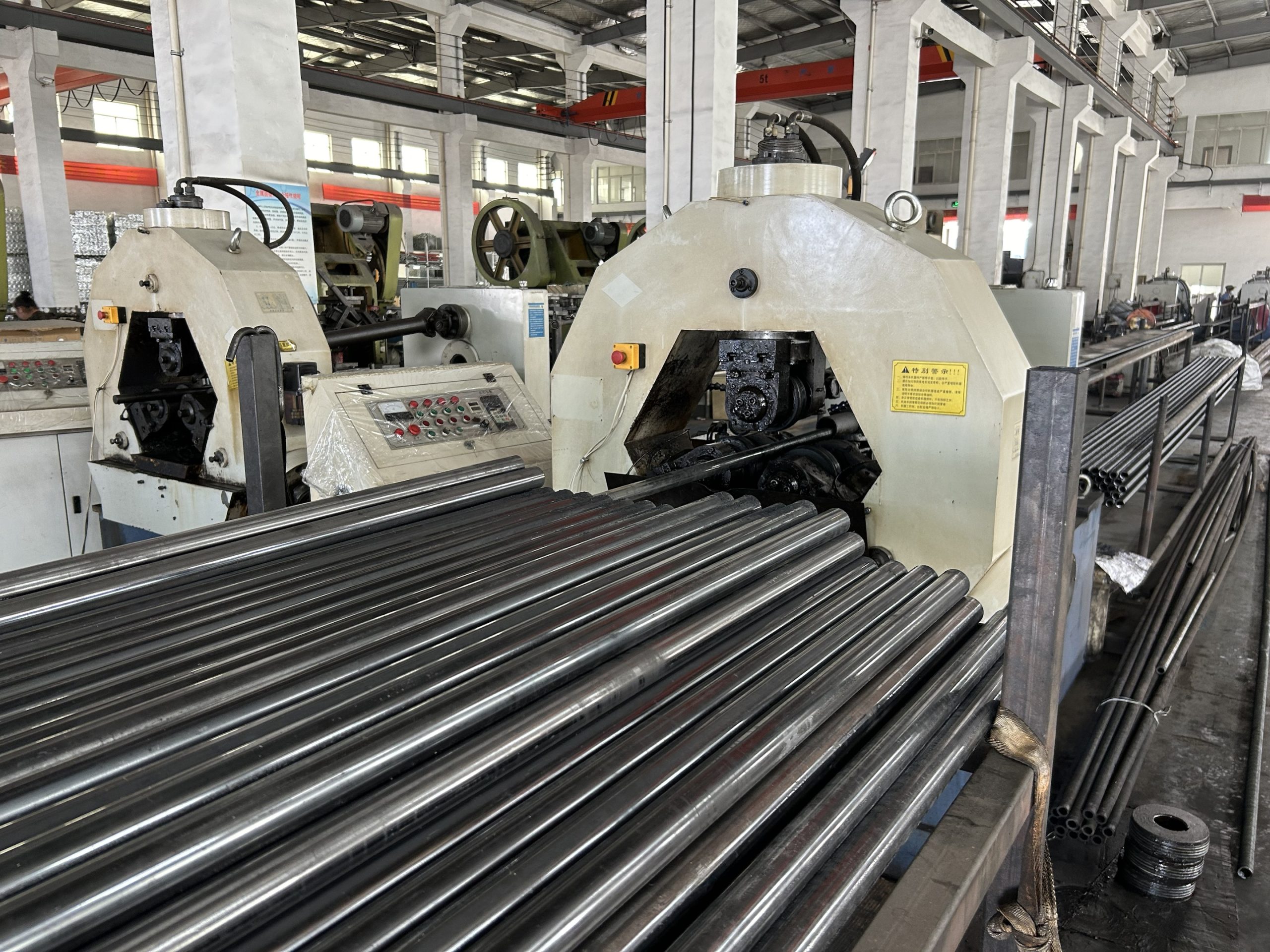

In this process, we need to use a pipe cutting machine and a thread rolling machine. The factory currently has two thread rolling machines, a two-axis thread rolling machine, and a three-axis thread rolling machine.

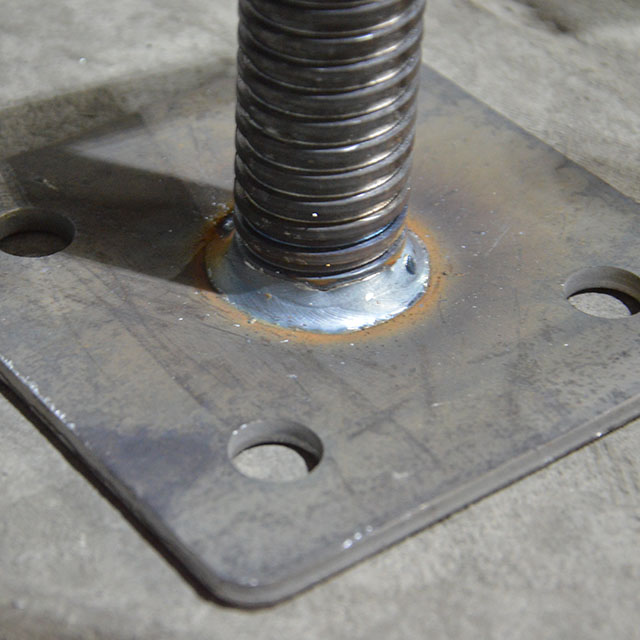

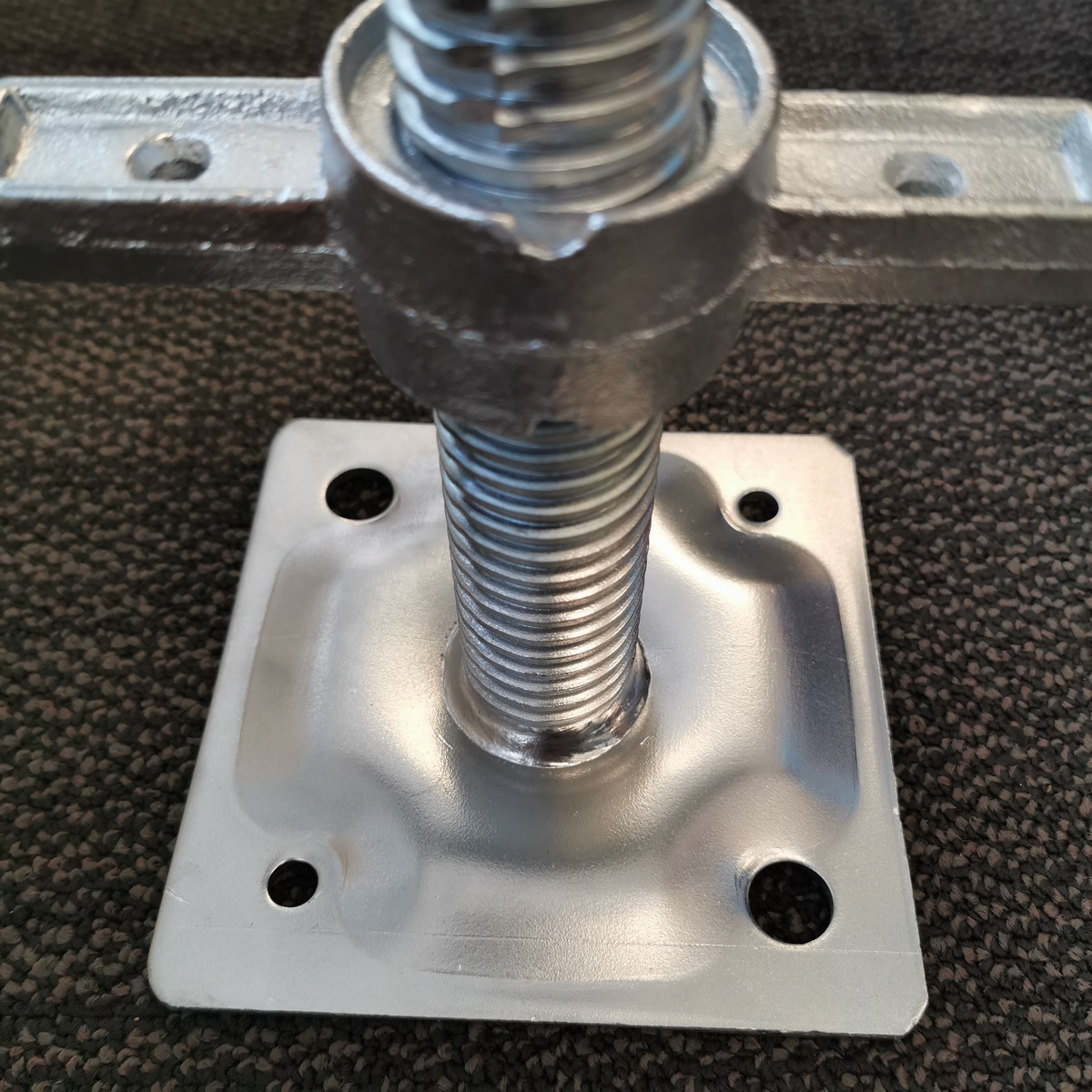

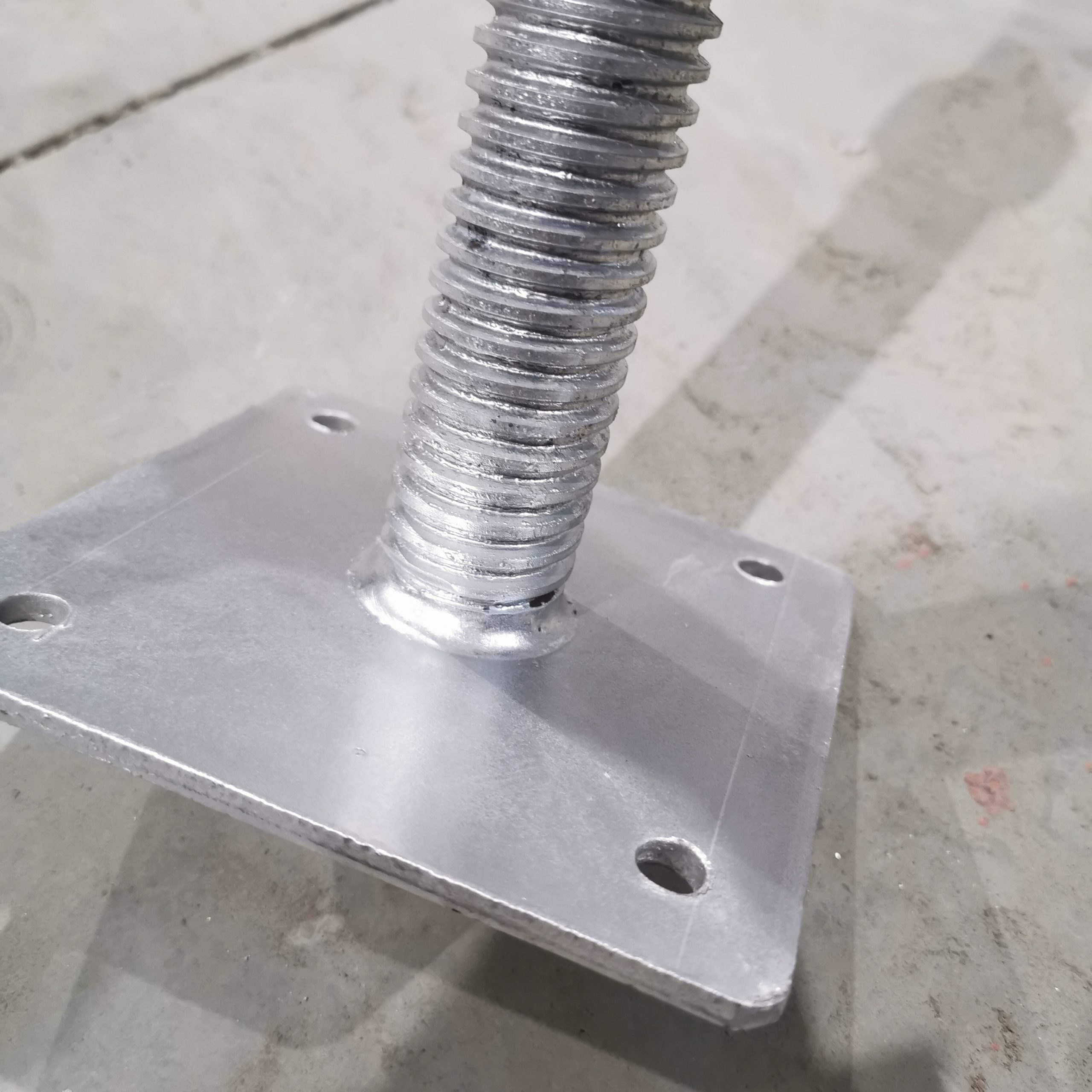

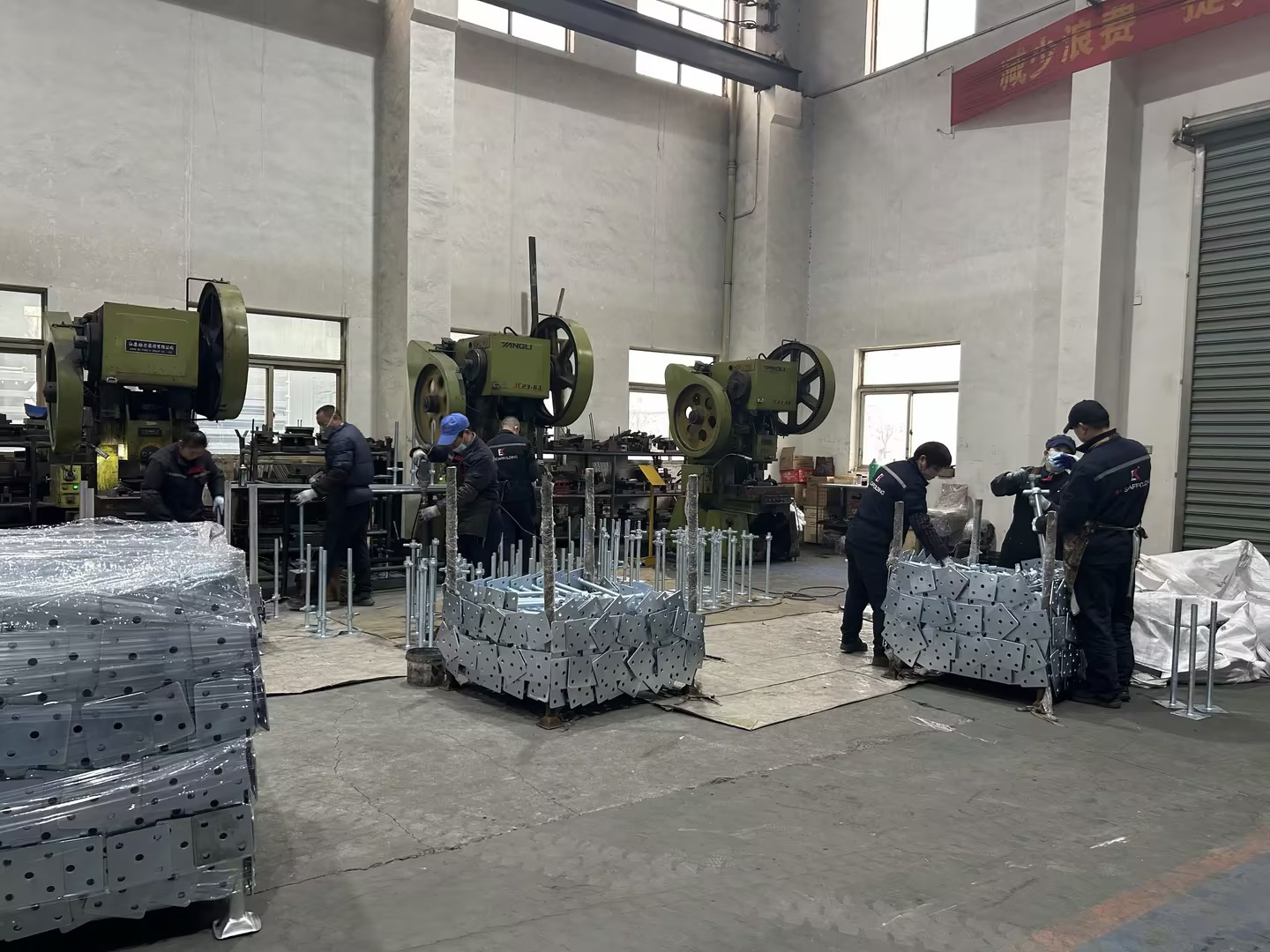

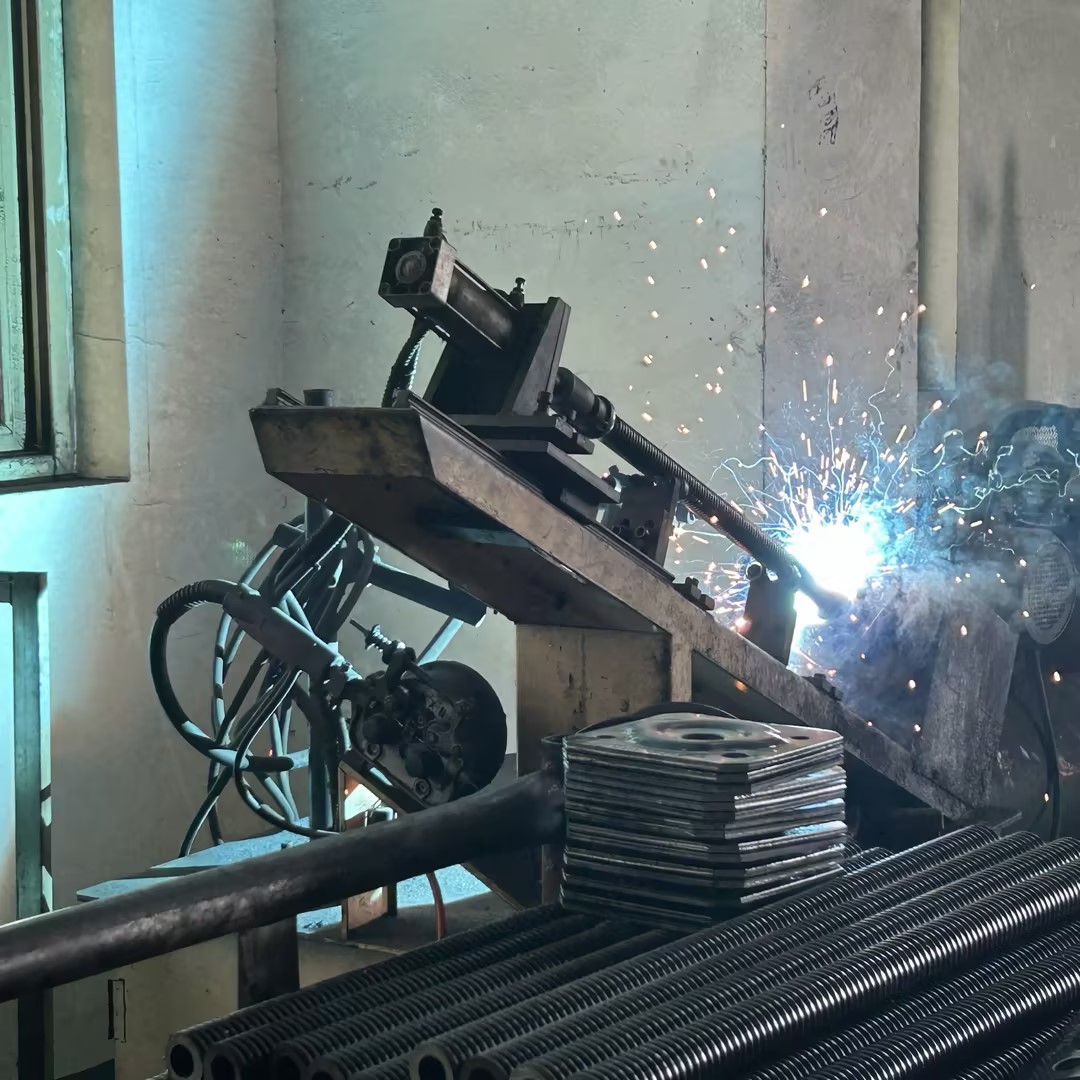

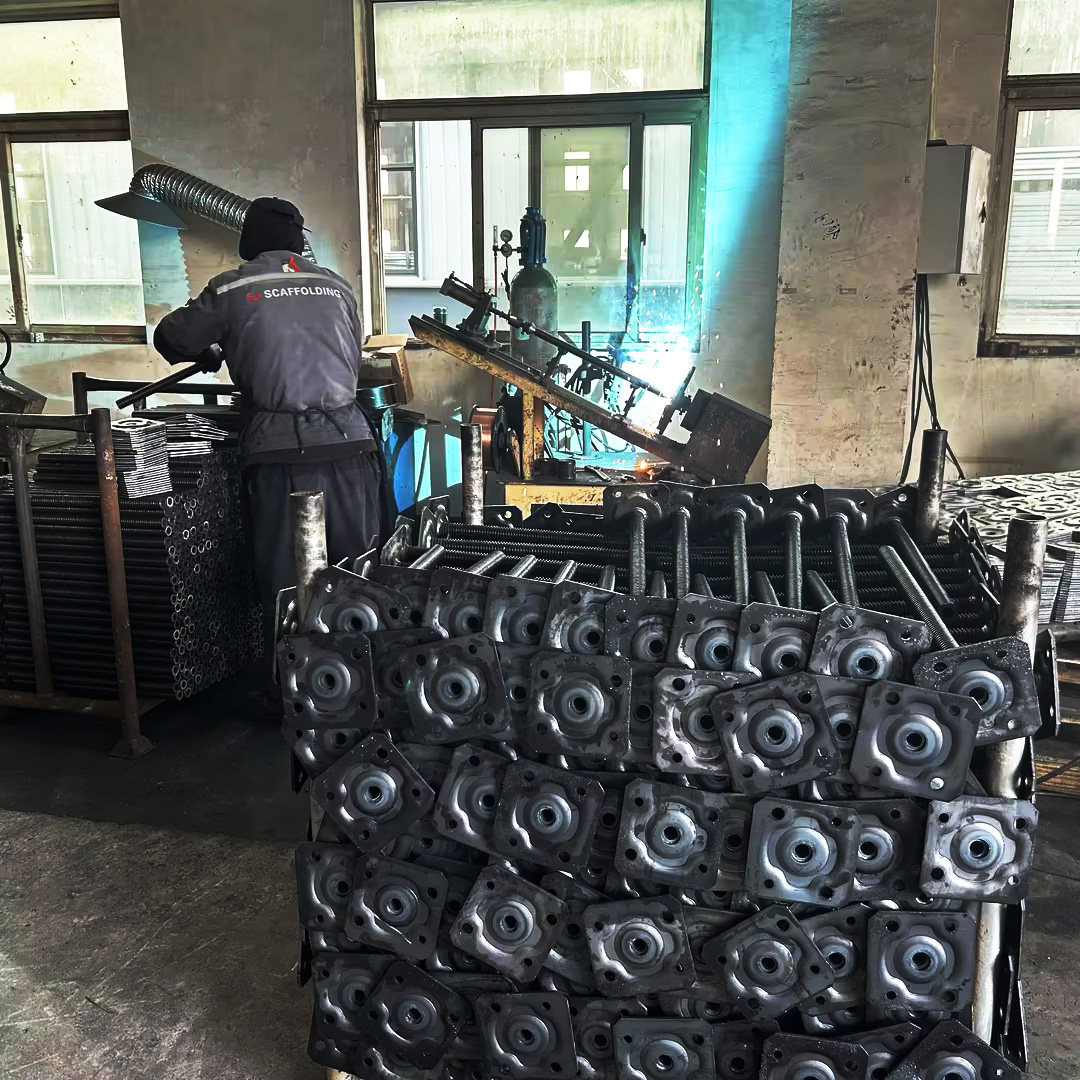

Base Plate process: shearing → blanking → forming (drumming) → punching → welding.
EK manufacturer has shearing machines, forming machines and welding machines to assist in the completion of the bottom plate process.

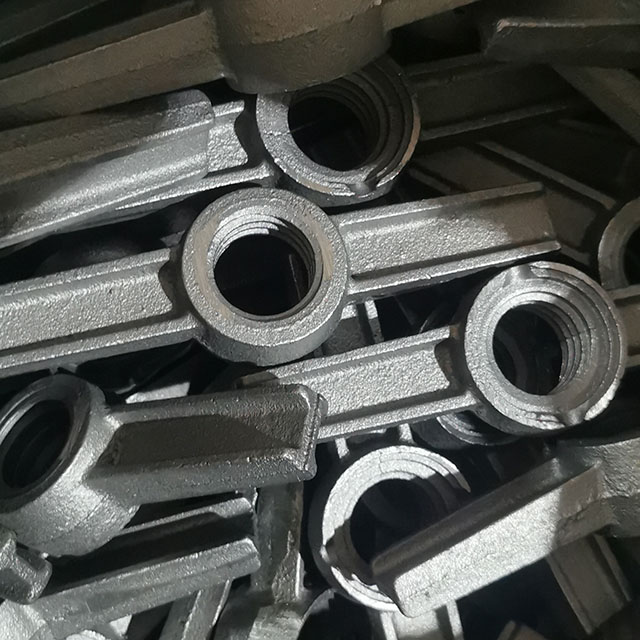

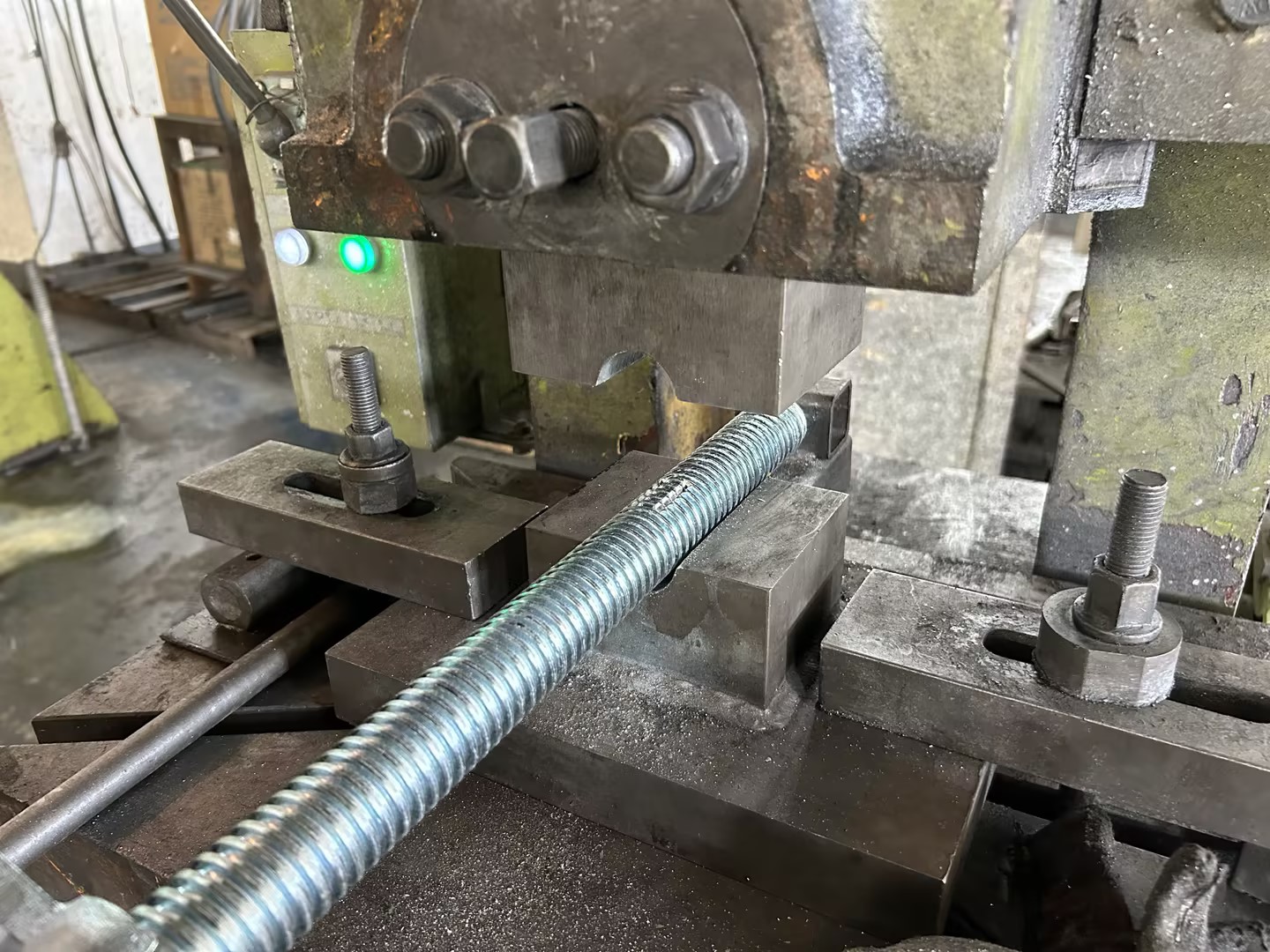

Screw Nut process: black parts → surface treatment (electro-galvanized/hot-dip galvanized) → screw nuts → broken teeth (spot welding/stamping)
After the nut arrives at the factory, it will first undergo surface treatment, usually electro-galvanized and hot-dip galvanized, then the nut will be screwed onto the screw, and finally the thread will be destroyed on the screw. This process will use spot welding or stamping.

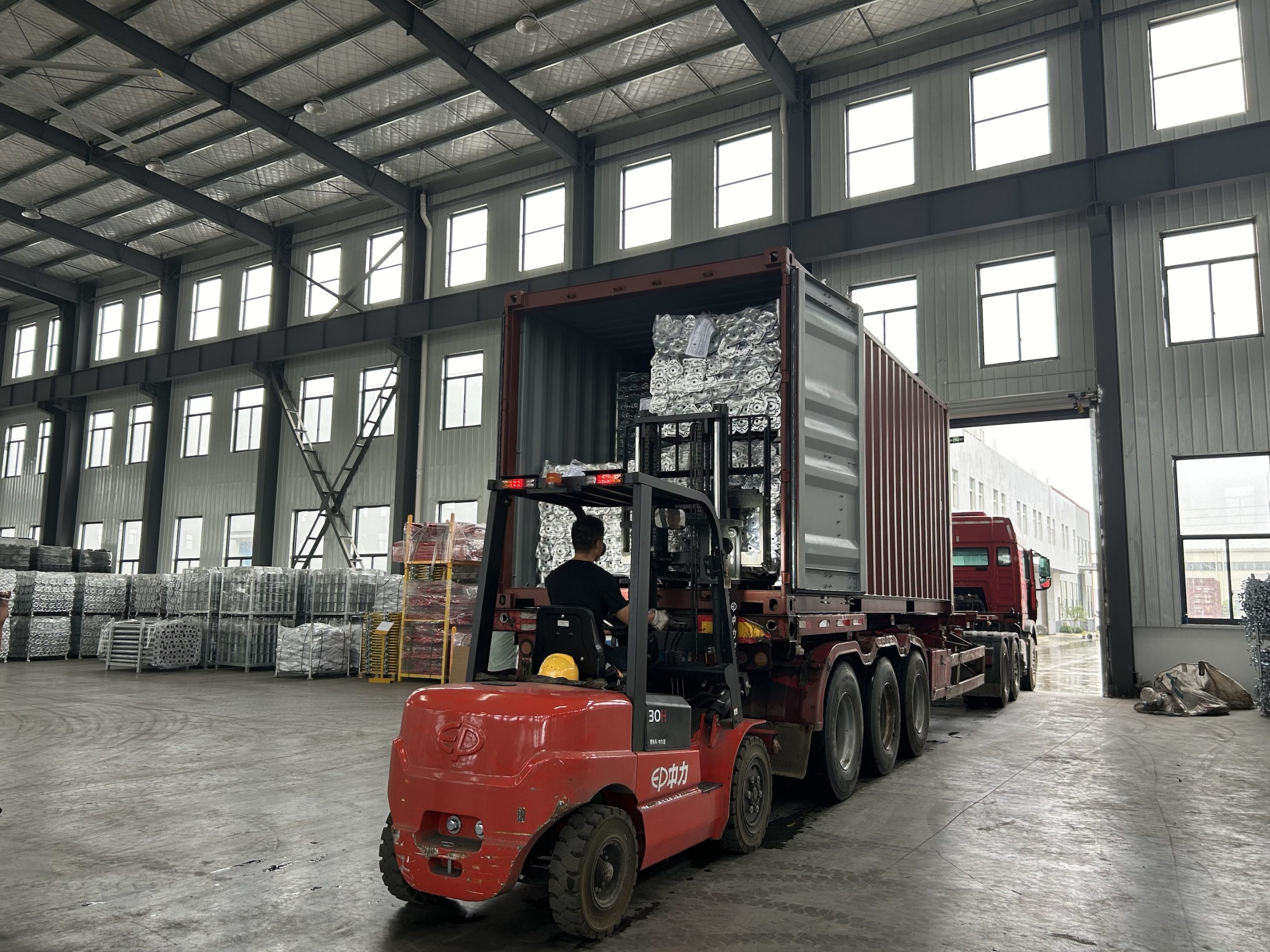

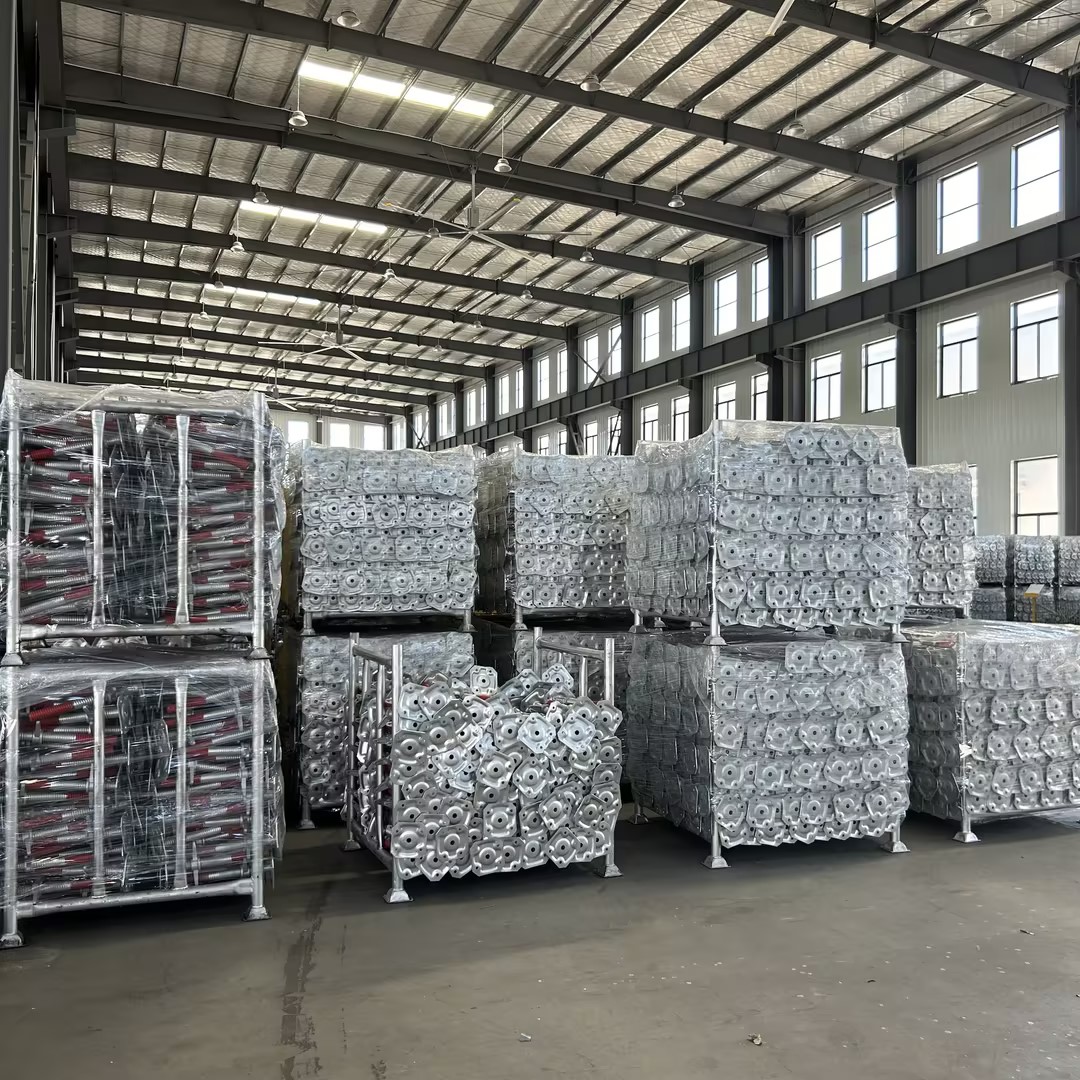

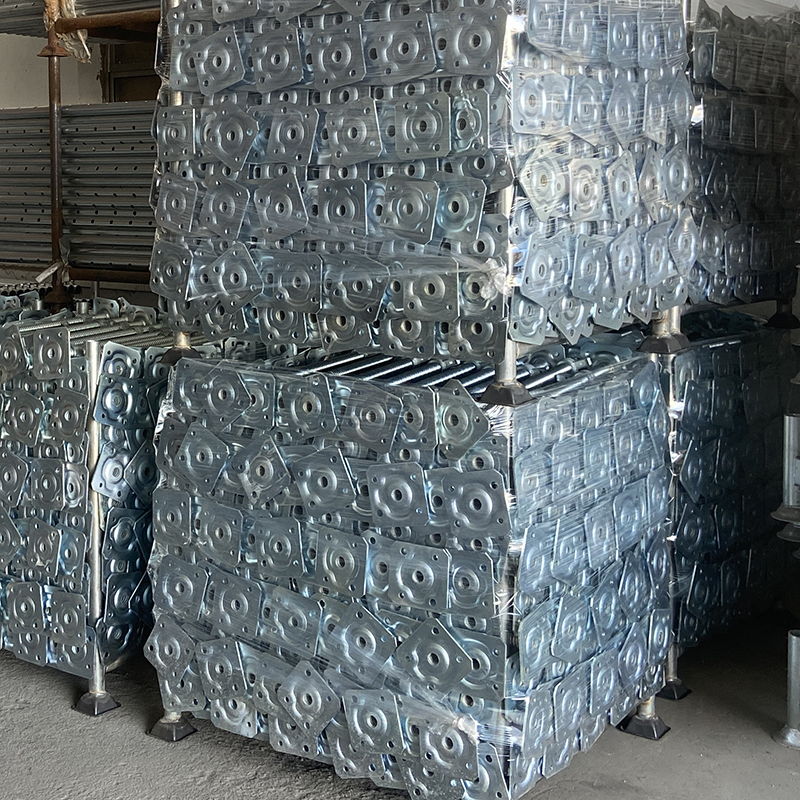

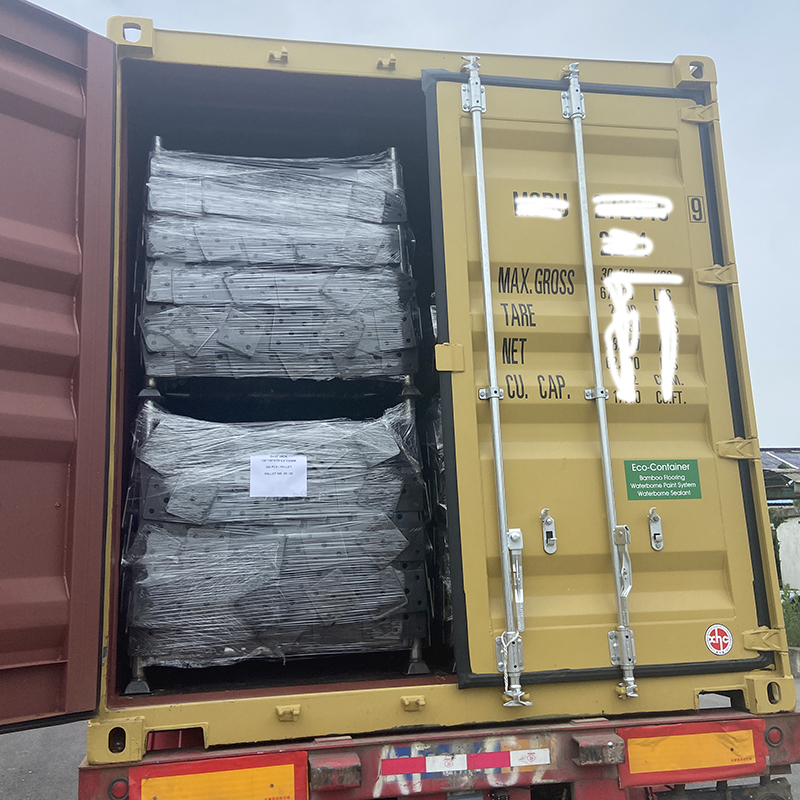

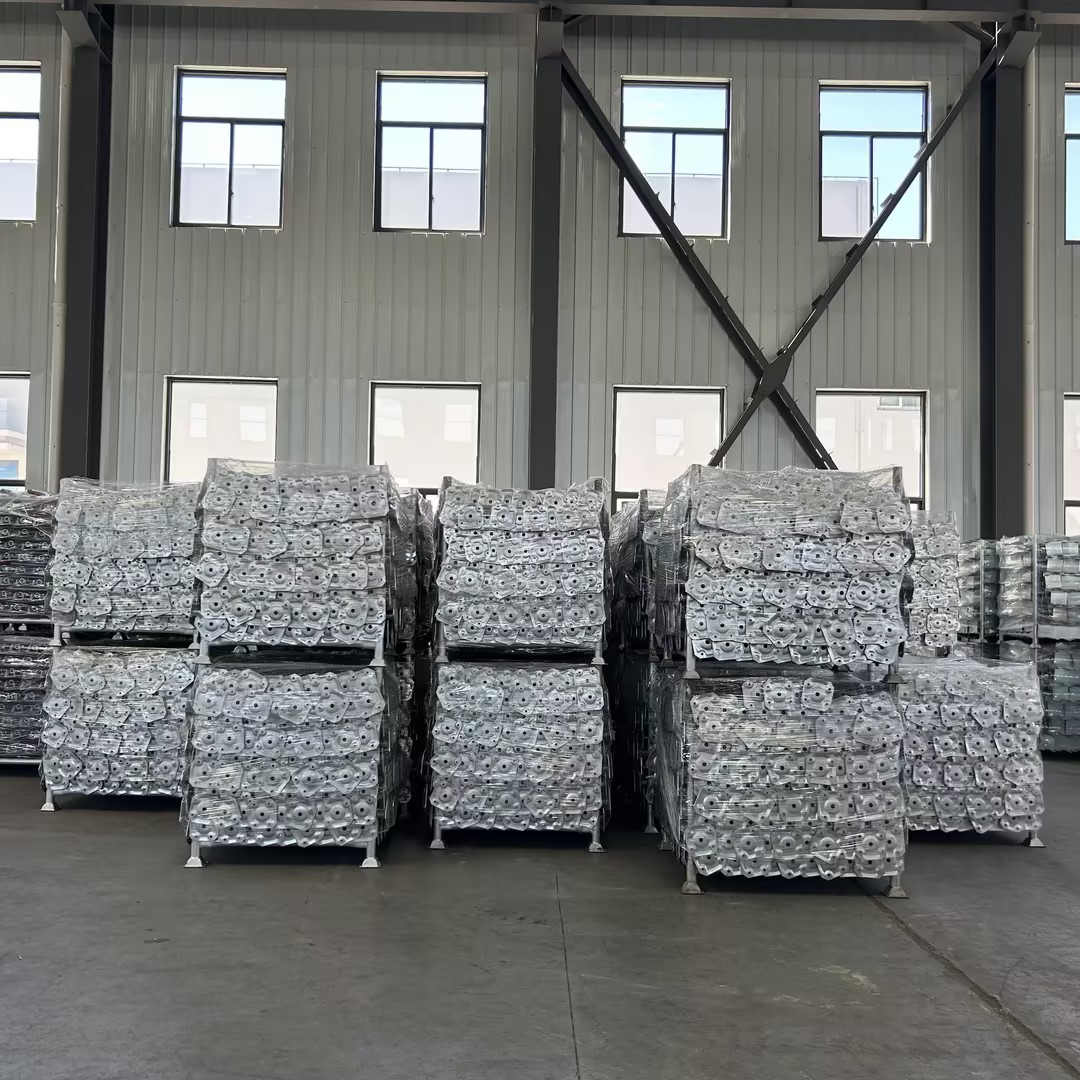

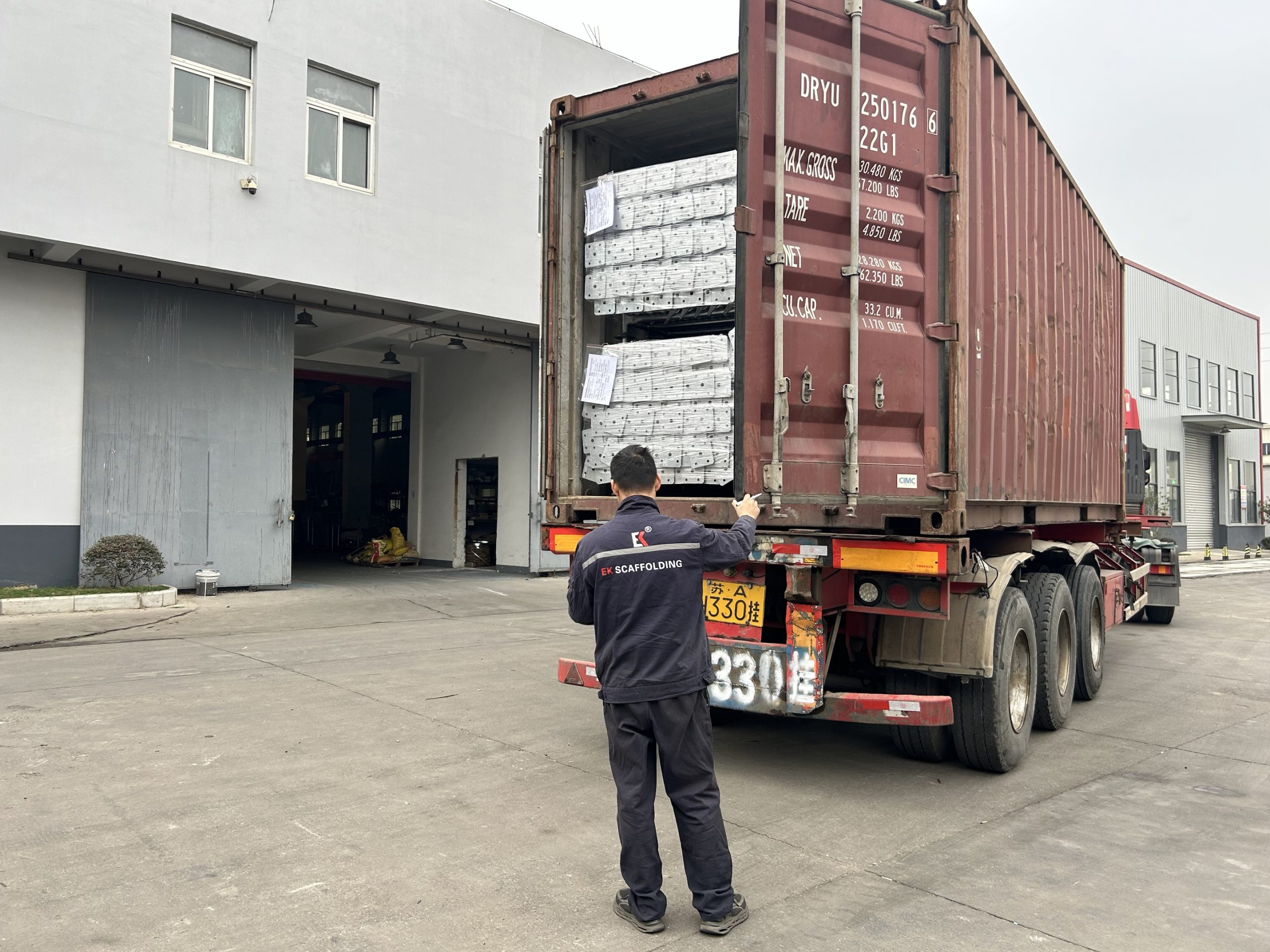

After the above three sets of procedures are completed, the base Jack will be packed and boxed, and the completed screw base jack will be shipped to the customer.
