Kwikstage modular scaffolding is a modern, self-locking scaffolding system widely used in regions such as Africa and Europe for access walkways and support structures across construction, shipbuilding, offshore engineering, and industrial maintenance sectors. The system utilizes pre-welded V-shaped pressed fittings and wedge pins, allowing workers to quickly lock components together without the need for loose nuts or bolts. This modular system is also known by various names, including Quickstage, Star Scaffolding, Stage Scaffold, Q/Stage, Quick Shore, or Star Shore.
Key Components of Kwikstage Scaffolding

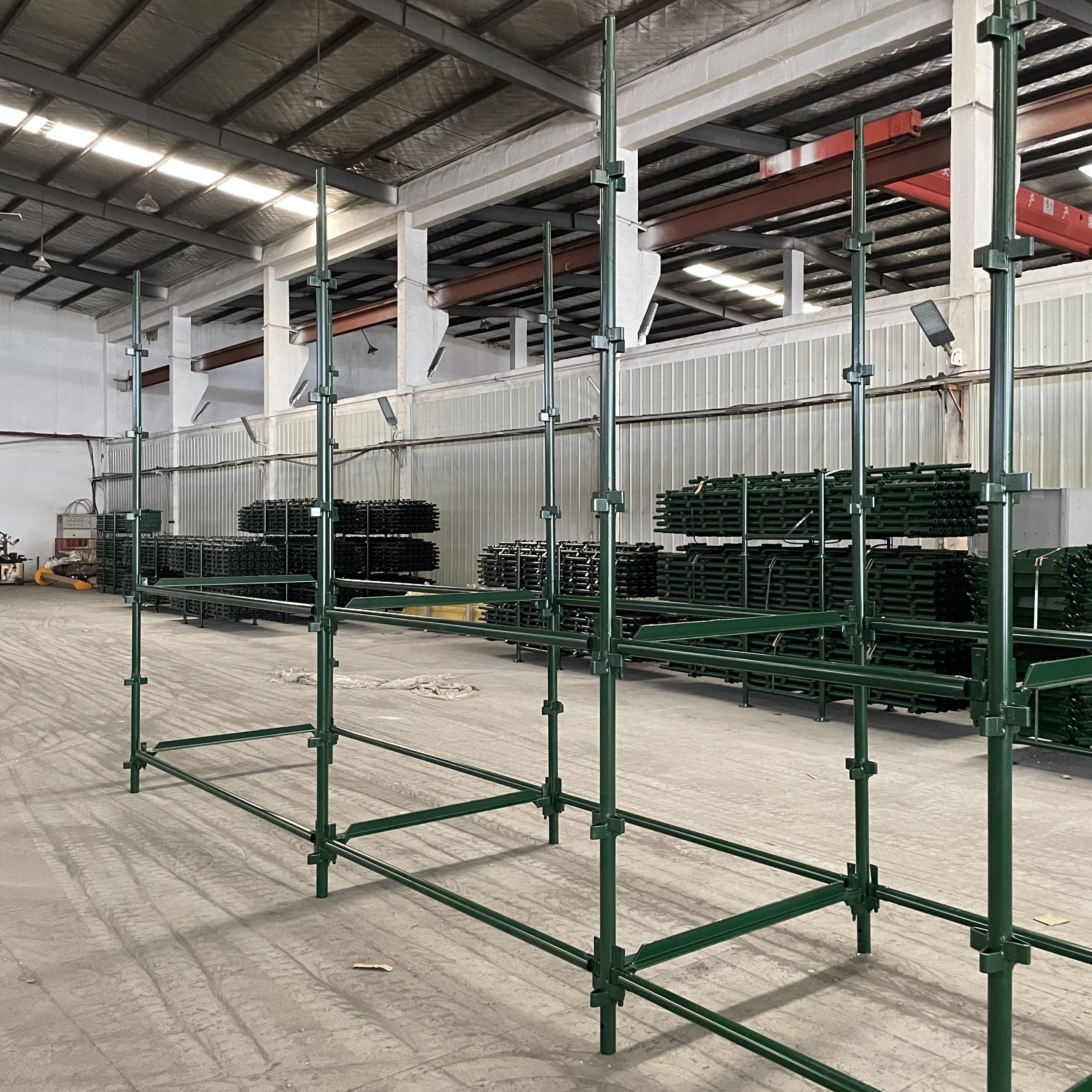

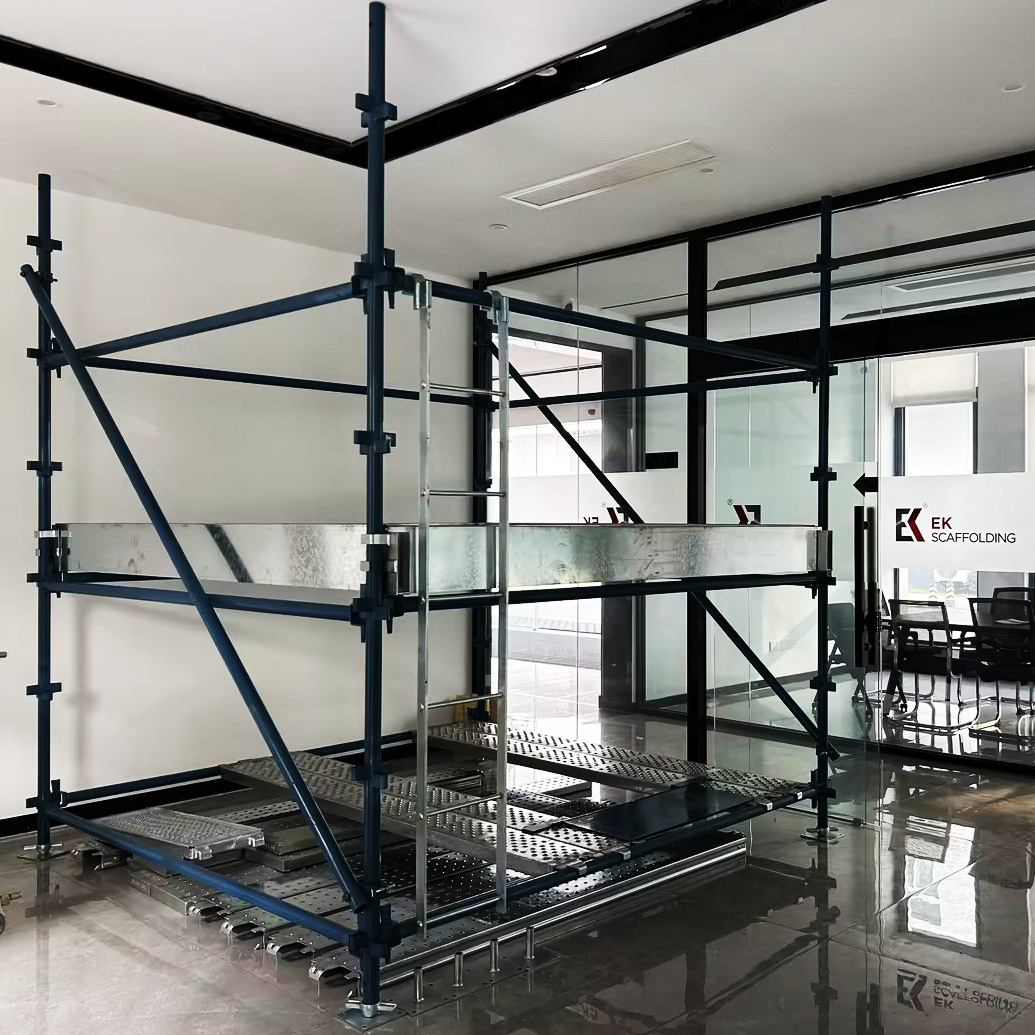

Kwikstage is a modular scaffolding system comprising components such as standards (verticals), ledgers (horizontals), transoms, brackets, scaffold boards, adjustable base jacks, and wall ties. Ledgers are equipped with pressed wedge-shaped connectors, while standards feature sets of V-shaped sockets arranged in a star pattern at 500mm intervals.
Kwikstage Standard: A vertical steel tube featuring V-shaped locating fittings welded at 600mm intervals, designed to connect ledgers at 90-degree angles.
Kwikstage Ledger: A horizontal member that locks onto the standards to form guardrails and frame spans.
Kwikstage Transom: A support beam used to secure steel scaffold boards or timber planks.
Kwikstage Diagonal Brace: Connects diagonally across standards to maintain the overall stability of the Kwikstage scaffolding structure.
Kwikstage Tie Bar: Used to reinforce scaffolding platforms at side-mounted cantilever brackets (including single, double, and triple-board brackets). It ensures the alignment of side-bracket scaffolding and provides additional support for inner scaffold boards within the system.
Kwikstage Steel Board: A high-strength, hot-dip galvanized metal platform that locks directly onto the scaffolding transoms. Hop-up Bracket: Kwikstage hop-up brackets lock onto the inner standard to bridge gaps and extend the working platform toward the building wall. Available in single-, double-, and triple-board widths, these brackets safely expand the working area.
There Are Currently Two Main Types of Kwikstage Scaffolding:
Australian Type: Kwikstage utilizing thumb pins and wedge connectors; primarily used in Australia, the UK, and Ireland.
African Type: Q/Stage utilizing C-shaped pressed components and wedge connectors; primarily used in Africa, Indonesia, and the Middle East.
Differences Between Australian and African Kwikstage Scaffolding
Australian and African Kwikstage scaffolding systems differ in tube dimensions, material grades, connection nodes, and standards.
Australian Kwikstage Scaffolding
Tube dimensions: 48.3 mm OD × 4.0 mm wall thickness.
Material grade: Q235 / S235
Connection nodes: “Thumb-lock” style ledger ends.
Compliance: Manufactured strictly according to AS/NZS 1576 standards.
African Kwikstage Scaffolding
Tube dimensions: 48.3 mm OD × 3.35 mm wall thickness.
Material grade: S355
Connection nodes: C-shaped pressed ledger ends and locking pins.
Compliance: Manufactured according to SANS1008 standards.
Additionally, there are significant layout differences between the two standards: Australian-type Kwikstage relies primarily on transoms to support the scaffold boards, whereas African-type Kwikstage utilizes round ledgers and focuses on the use of hook-on boards for assembly.
Advantages of Kwikstage Scaffolding
1.Durability: Kwikstage scaffolding is made from robust materials and is suitable for long-term use.
2.Adaptability: Highly versatile; suitable for various types of building construction and shoring projects.
3.Ease of Installation: The system is quick and simple to erect and dismantle.
4.Low Maintenance Costs: Does not require expensive maintenance.
5.No loose parts: It utilizes a wedge-lock system, eliminating the need for separate screws or nuts, which facilitates storage and transport.
FAQs
1. How Is The Stability of The Kwikstage Scaffolding System Ensured?
Stability is maintained through the use of adjustable base jacks and diagonal braces, ensuring all connection points are securely locked in place.
2. How Is Kwikstage Scaffolding Protected Against Corrosion and Rust?
Surface treatments typically include painting, powder coating, cold galvanizing, and hot-dip galvanizing. During use, dirt and debris should be cleaned off promptly, and the scaffolding should be stored in a dry, well-ventilated area.
3. Can The Kwikstage System be Used for Specialized Installations Such As Roof Guardrails?
Yes. The system can integrate safety features to provide roof guardrails for specialized tasks, such as the installation of piping, gutters, and fascia boards.
4. Does The Kwikstage Scaffolding System Comply With Safety Regulations?
Yes. Kwikstage scaffolding is designed to meet WorkSafe (Occupational Health and Safety) regulations, providing safe access for various tradespeople working at heights, such as bricklayers, carpenters, and plumbers.
